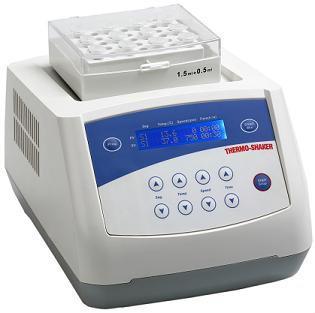

Thermo Shaker incubator

Model No.︰	MSC-100
Brand Name︰	-
Country of Origin︰	China
Unit Price︰	-
Minimum Order︰	1 pc

Total 20 Related Items

Product Description

Designed for simultaneous heating and cooling and mixing of small samples, the MSC-100 are supplied with interchangeable platforms for microtubes.
Mixing and heating and cooling modes can be used both simultaneously and independently, i.e. the device can work as a shaker and as a thermostat. The main body of the Mixing Block can be used with different kinds of blocks.

Features

1. LCD display. It easy to setup and use.
2. Accurately control and display time, temprature and speed
3. Over heating protection device ensures safety & reliability
5. Temperature can be calibrated to meet user's needs.
6. Low noise working even under the speed of 1,500rpm
7. Conforms to CE safty standard
8. Custom blocks are available to satisfy experimental requirement
9. Gental, reliable mixing with long-life direct current motor

Specification

Temp. Setting Range: 0℃~100℃
Temp. Control Range: 0℃~100℃
Timing Range: 1 min~99h59min
Mixing Speed: 200rpm-1500rpm
Mixing Orbit: 2mm
Temp. Control Accuracy: ＜± 0.5 ℃
Display Accuracy: 0.1 ℃
Heating Time: ≤20min (from 20 ℃ to 100 ℃)
Cooling time: ≤25min(from ambient to ambient - 20 ℃)
                      ≤15min(from 100 ℃ to 20 ℃)
Cooling depth:
1) The block temperature can be descended to 0℃ if the ambient temperature is 20℃
   2) The block temperature can be descended to 4℃ if the ambient temperature is 25℃
   3) The block temperature can be descended to 10℃ if the ambient temperature is 30℃
Cooling and Heating Parts: TE Module
Supply Power: AC220V 50/60Hz or AC120V 50/60Hz
Dimension ( LxWxH) mm: 300x220x170
Net Weight: 8.5 kg

Dry Bath Blocks for MK-10/MK-20/MS-100/MSC-100
Type
Parameter
Max. Temp
Min. Temp
（MK-20）
Max. Speed
(rpm)
A
96×0.2ml
100℃
-10℃
1500
B
54×0.5ml
100℃
-10℃
1500
C
35×1.5ml
100℃
-10℃
1500
D
35×2.0ml
100℃
-10℃
1500
E
15×0.5ml+20×1.5ml
100℃
-10℃
1500
F
24×Dia.≤φ12mm tube
100℃
0℃
1200
G
12×15ml Falcon tube
100℃
0℃
750
H
6×50ml Falcon tube
100℃
0℃
750
I
103×67×30 Water bath block
100℃
0℃
1500
